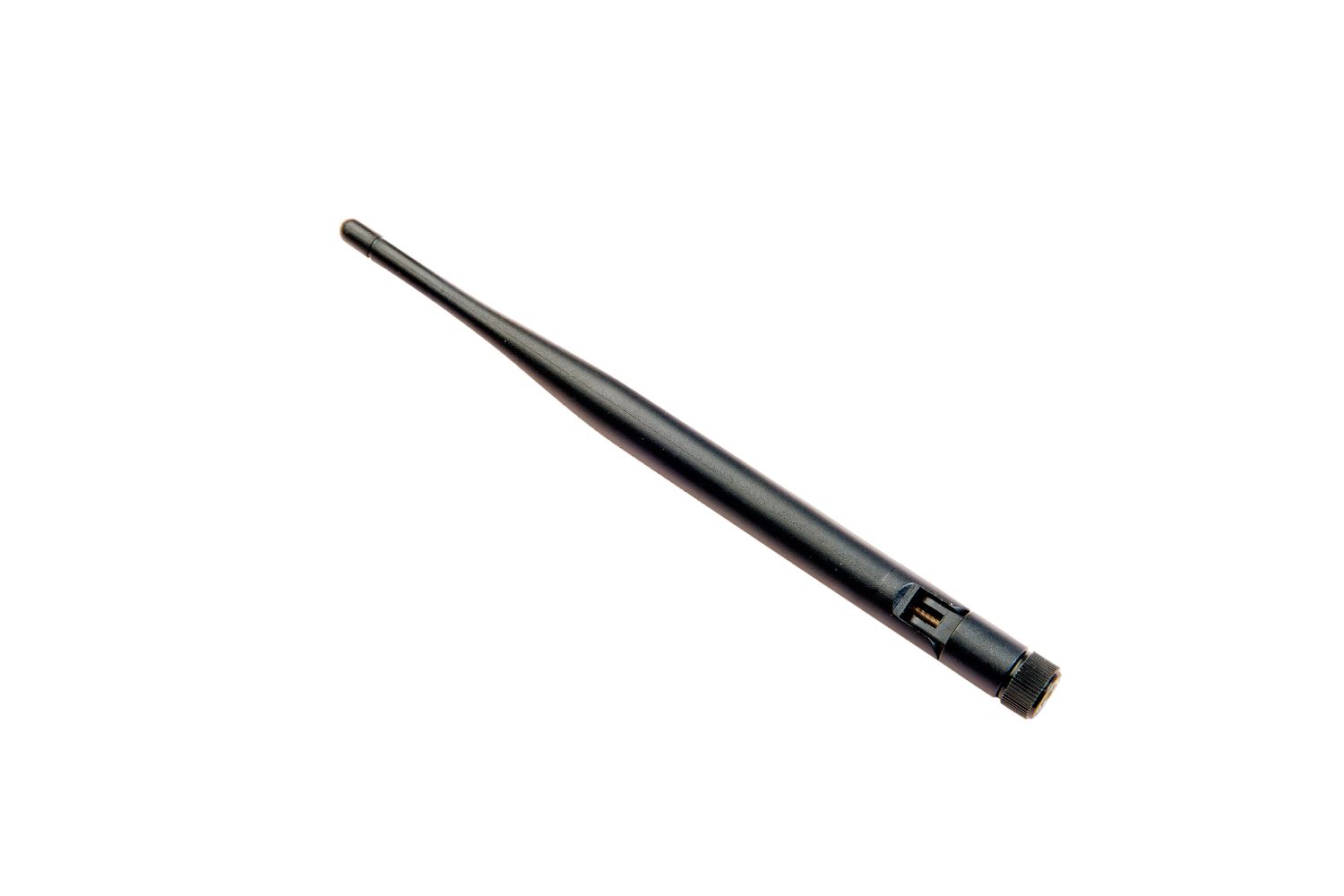

EMB-ANT868-RD

868 MHz and 915 MHz antenna

Category:

External antenna for 868 MHz and 915 MHz transmissions.

Technical Specifications

  • Frequency band: 868 MHz / 915 MHz
  • Impedance: 50 Ω
  • Efficiency: 85% (868MHz); 75% (915MHz)
  • Polarization: Linear
  • Propagation: Omnidirectional
  • Gain: 2.2 dBi
  • Dimensions: 195×12.98 mm
  • Connection: SMA Male
  • Operating temperature: -40° / +125°C
  • Hinge: Foldable 90 degrees at the hinge level
  • Color: Black

Ordering Informations

Part number: EMB-ANT868-RD

For quotes, please use quotation form or contact our sales area at sales@embit.eu.

DATASHEET EMB-ANT868-RD
