EMB-Z2530PA

2.4 GHz ZigBee-ready and 802.15.4-ready module

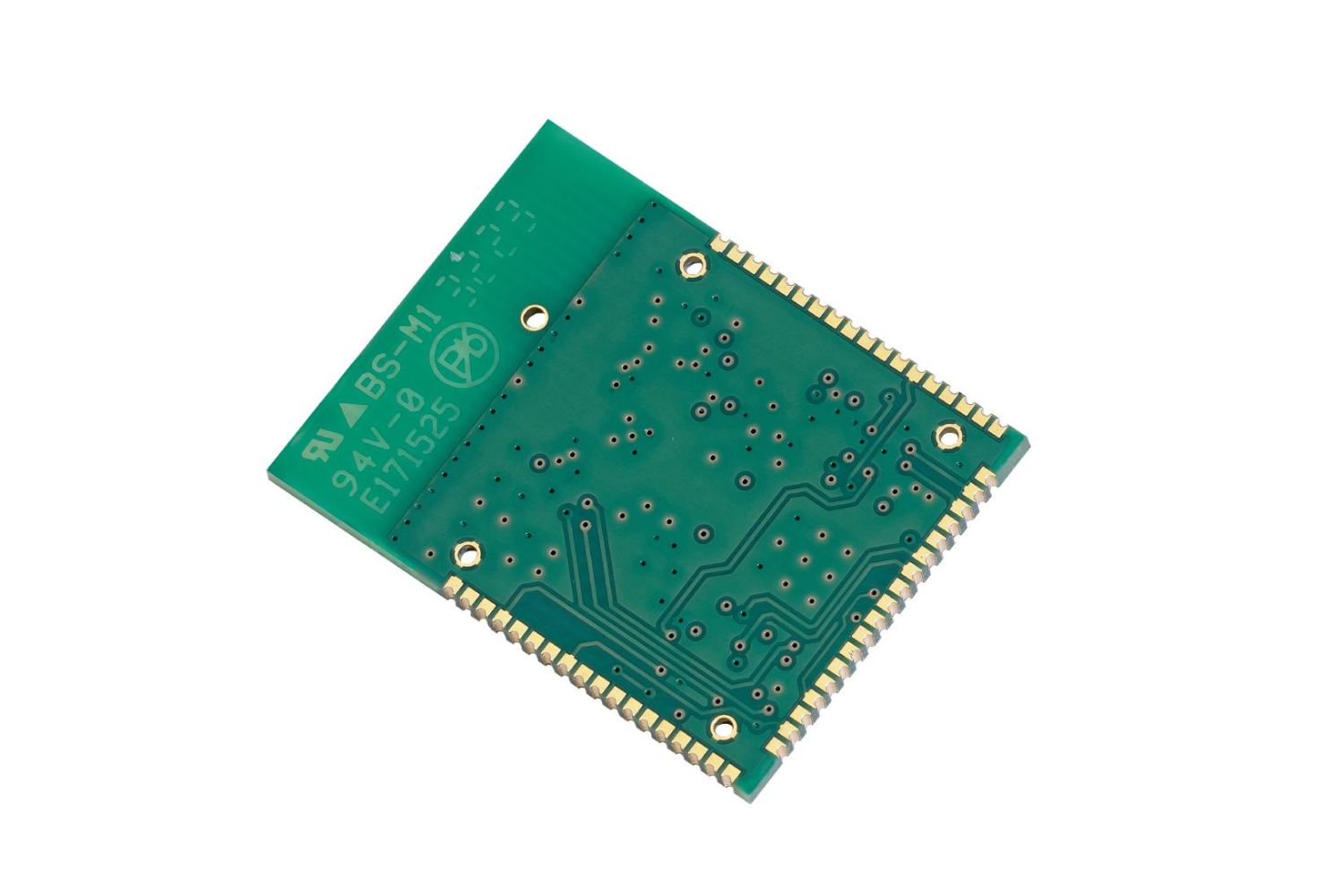

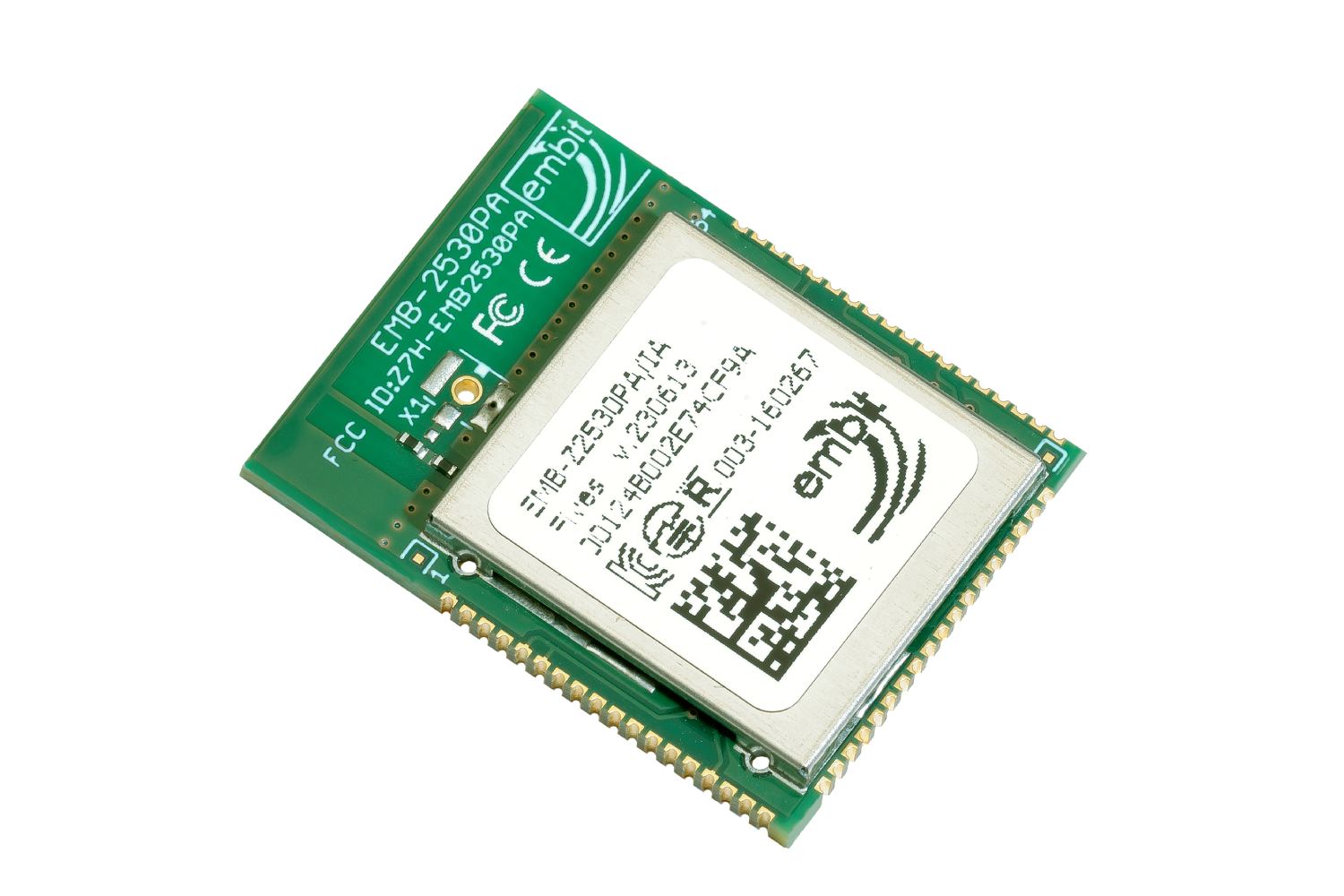

EMB-Z2530PA is a 2.4 GHz low-power wireless module capable of operating in 802.15.4 or ZigBee networks as a coordinator, router or end device. The module features an integrated PA and LNA that increase the link budget and thus increase the communication range. An integrated PCB antenna makes the module a low-cost solution, removing costs typically associated with external antenna mounting.

Category:

EMB-Z2530PA is a 2.4 GHz low-power wireless module capable of operating in 802.15.4 or ZigBee networks as a coordinator, router or end device. The module features an integrated PA and LNA that increase the link budget and thus increase the communication range. An integrated PCB antenna makes the module a low-cost solution, removing costs typically associated with external antenna mounting.

Notable features include:

  • Output power up to +20 dBm (100 mW)
  • RF sensitivity up to -100 dBm
  • Integrated PCB antenna or U.FL connector option
  • Open platform

The EMB-Z2530PA modules ship programmed with EBI-802.15.4 which allows the customer to use the modules as a simple, ready-to-use modem (using AT-like commands over UART; see EBI protocol page for more information). The evaluation kit EMB-Z2530PA-EVK is strongly suggested to customers willing to develop their own firmware applications since the kit provides all hardware tools required to download a custom firmware on the module. The IDE to be used depends on the chosen firmware stack. IAR Embedded Workbench is usually employed when working with the Z-Stack or TIMAC stacks.

Additional information

Program memory

256 KB

RAM memory

8 KB

RF output power

(MAX) +20 dBm

Sensibility

-100 dBm

Based on

TI CC2530

Form Factor

29 x 22 mm

Consumption

(standby): 1.1 µA

Supply voltage

3.3 V

Part Number

EMB-Z2530PA

Network Topologies Supported

Topology Firmware stack Notes
TIMAC 802.15.4, TI ZStack  Supported also via UART commands, thanks to Embit EBI-802.15.4.
TIMAC 802.15.4, TI ZStack  Supported also via UART commands, thanks to Embit EBI-802.15.4.
TI ZStack
TI ZStack



Firmware Support

Supported firmware stacks:

Supported EBI variants:

  • Embit Binary Interface for IEEE 802.15.4 protocol: EBI-802154
  • Embit Binary Interface for ZigBee protocol: Contact us

All the firmware stacks and the documentation is on the CD-ROM included in the Evaluation Kit.

Certifications

EMB-Z2530PA wireless modules are

CE certified (Europe)

FCC certified (US): Z7H-EMB2530PA

MIC certified (Japan): 003-160267

KC certified (Korea): R-CRM-Emb-EMB-Z2530PA

Addictionally, EMB-Z2530PA wireless moduless are ZigBee-ready.

For more informations about certification of your final product (regarding both conducted and radiated emissions tests) and compliance with European regulations, you can contact us; indeed pre-compliance assistance is one of Embit services.

Ordering Information

Part number:

  • EMB-Z2530PA/IA (EMB-Z2530PA with integrated antenna)

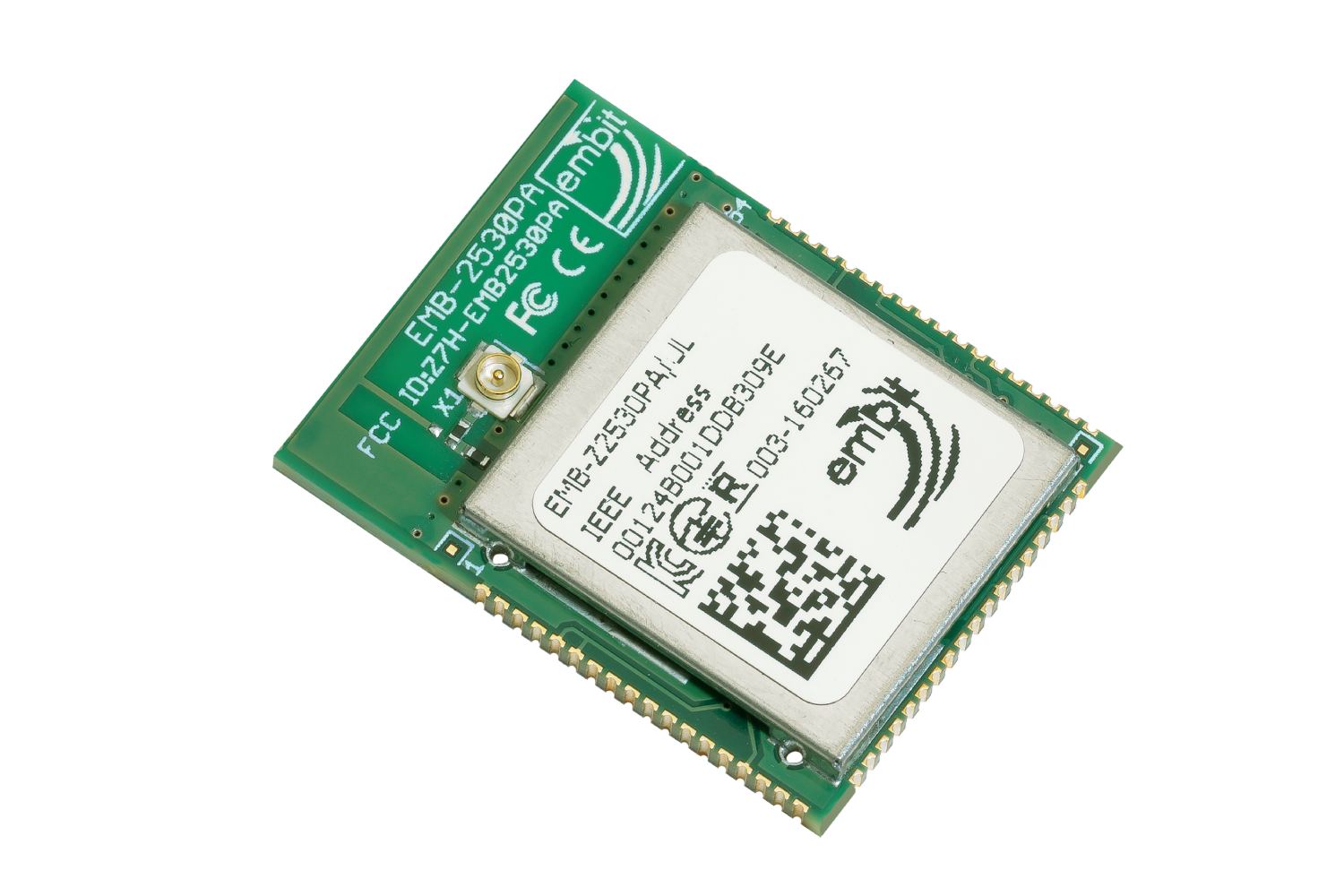

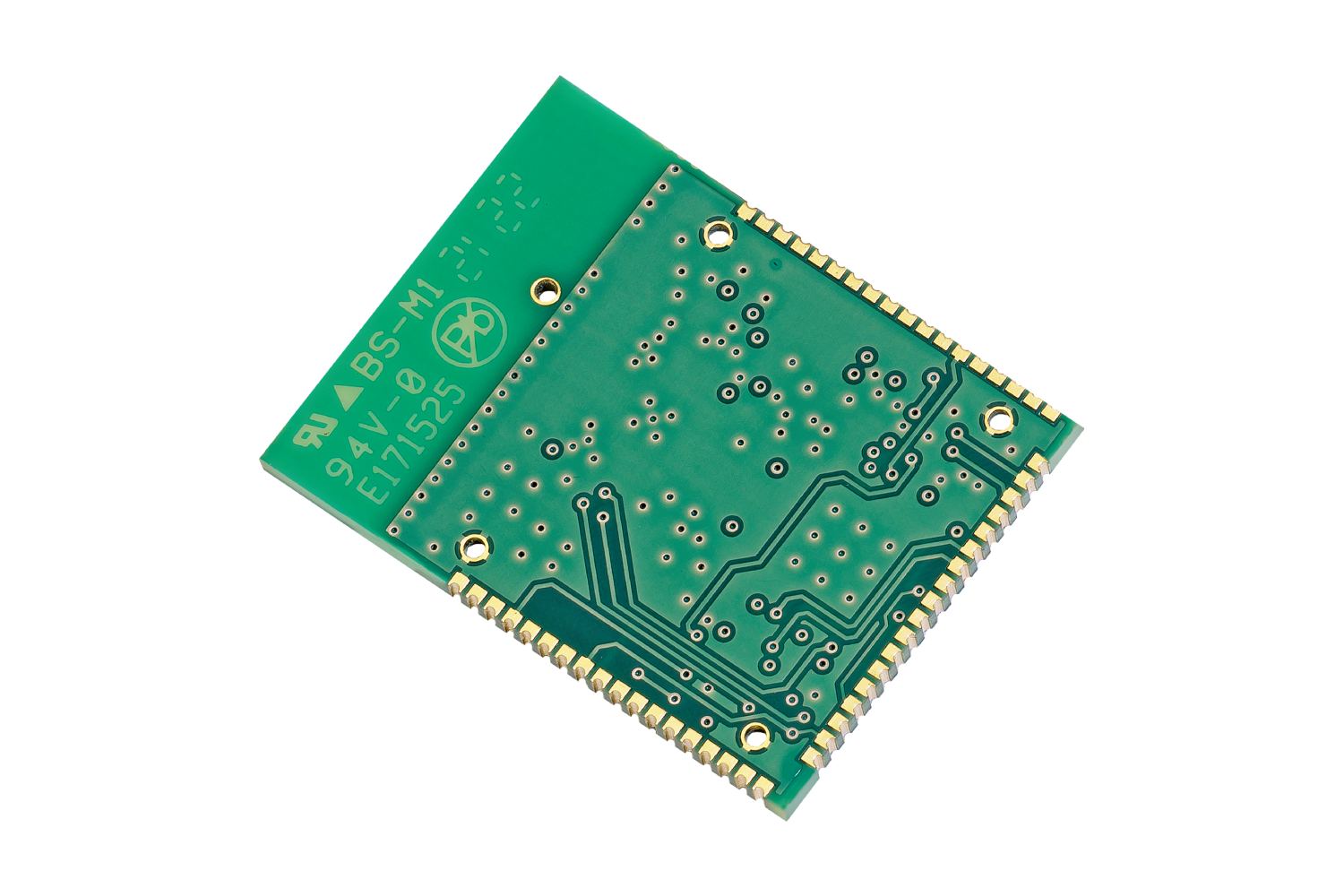

  • EmB-Z2530PA/UL (EMB-Z2530PA with U.FL connector for external antenna)

Note: EMB-Z2530PA modules ship programmed with EBI-802.15.4.
