EMB-Z2530PA-EVK contains all hardware and software tools required to get started with Embit 2.4GHz EMB-Z2530PA wireless modules.



EMB-Z2530PA-EVK contains all hardware and software tools required to get started with Embit 2.4GHz EMB-Z2530PA wireless modules.

The kit allows you to develop your own IEEE 802.15.4-based or ZigBee-based application; the firmware can then be downloaded and debugged on Embit EMB-Z2530PA modules, by means of the Texas Instruments® CC debugger, included in the kit.

The evaluation boards provided in this kit expose most of the EMB-Z2530PA module’s features, and, thanks to their many interfaces (USB, RS232, JTAG, etc), allows for a fast development-deploy-debugging cycle.

Important: note that IAR Embedded Workbench for 8051 is not included in the kit. IAR Embedded Workbench for 8051 is required to develop and compile firmware based on Texas Instruments® TIMAC 802.15.4 stack or on Texas Instruments® ZStack. Please refer to IAR website for more information about IAR licensing (30-days free evaluation licenses are available).

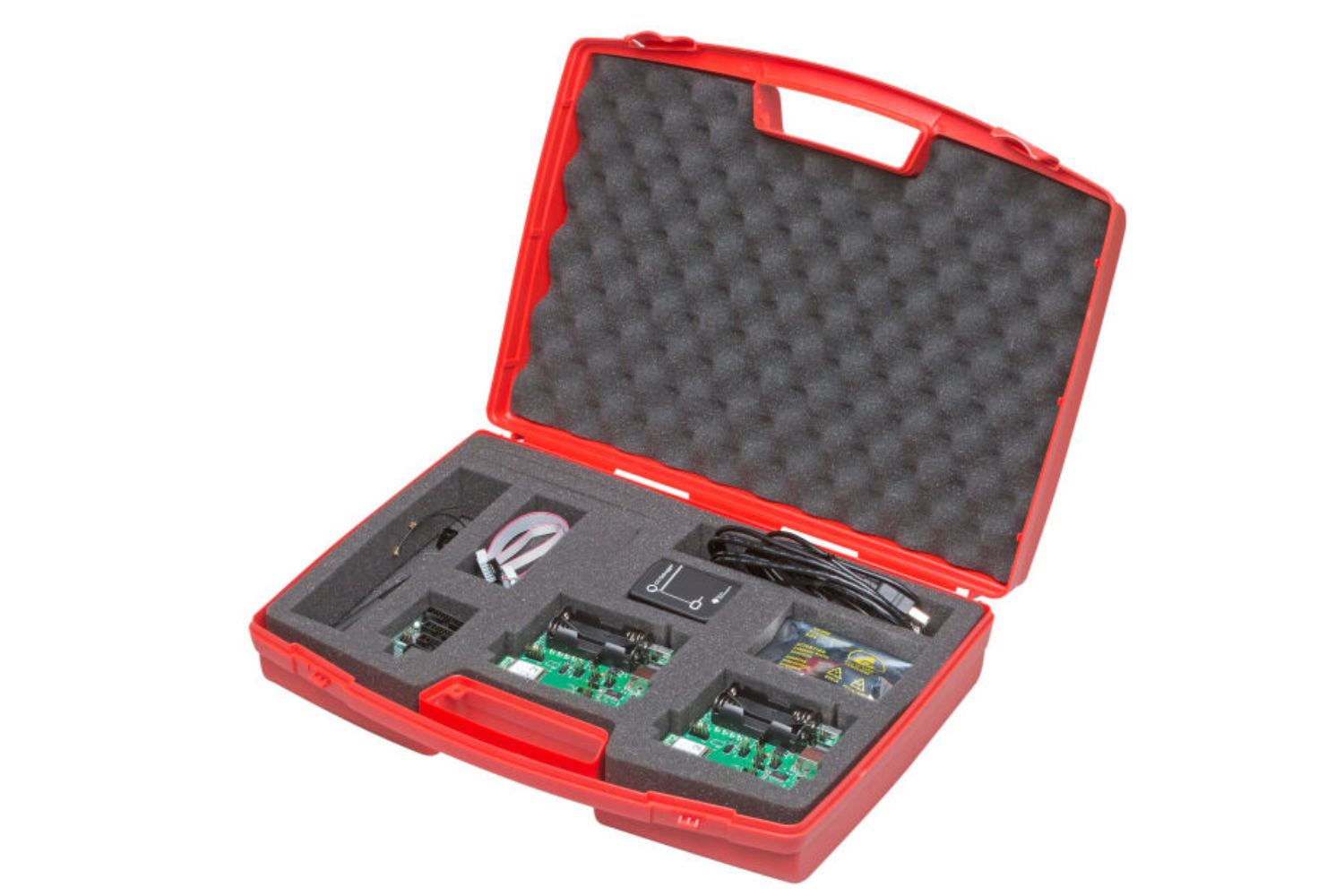

The kit includes:

  • 2 Evaluation Boards with EMB-Z2530PA modules
  • 1 EMB-Z2531PA-USB USB dongle
  • 2 Rubber Duck Antennas (EMB-AN24-20)
  • 1 USB Power Adapters
  • 4 Batteries
  • 2 USB Cables for PC connection
