EMB-Z2538PA
2.4 GHz ZigBee-ready and 802.15.4-ready ARM Cortex-M3 module
EMB-Z2538PA is a 2.4 GHz wireless module integrating a cutting-edge 32 bit ARM Cortex-M3 core and a state-of-art radio transceiver. The advanced ARM architecture makes easy the development of IEEE 802.15.4 / ZigBee / 6LoWPAN low-power applications to add wireless connectivity and multi-hop networking into existing products.
- Description
- Additional information
- Network Topologies Supported
- Firmware Support
- Certifications
- Ordering Information
- Attachment
EMB-Z2538PA is a 2.4 GHz wireless module integrating a cutting-edge 32 bit ARM Cortex-M3 core and a state-of-art radio transceiver. The advanced ARM architecture makes easy the development of IEEE 802.15.4 / ZigBee / 6LoWPAN low-power applications to add wireless connectivity and multi-hop networking into existing products.
Notable features include:
- 32 bit ARM Cortex M3 with 512 kB FLASH and 32 kB of SRAM (TI CC2538)
- Up to +20 dBm (100 mW) RF output power
- Integrated PCB antenna or U.FL connector
- Open platform
EMB-Z2538PA modules ship programmed with EBI-802.15.4 which allows the customer to use the modules as a simple, ready-to-use modem (using AT-like commands over UART; see EBI protocol page for more information). The evaluation kit EMB-Z2538PA-EVK is strongly suggested to customers willing to develop their own firmware applications, since the kit provides all tools required to download a custom firmware on the module.
Additional information
| Program memory | 512 kB |
|---|---|
| RAM memory | 32 KB |
| RF output power | (MAX) +20 dBm |
| RX Sensibility | 100 dBm |
| Based on | TI CC2538 |
| Form Factor | 29 x 22 mm |
| Consumption | (standby): 1.7 µA |
| Supply voltage | 3.3 V |
| Part Number | EMB-Z2538PA/IA |
Network Topologies Supported
| Topology | Firmware stack | Notes |
 |
TIMAC 802.15.4, TI ZStack | Supported also via UART commands, thanks to Embit EBI-802.15.4. |
 |
TIMAC 802.15.4, TI ZStack | Supported also via UART commands, thanks to Embit EBI-802.15.4. |
 |
TI ZStack | Supported also via UART commands, thanks to Embit EBI-ZigBee. |
 |
TI ZStack | Supported also via UART commands, thanks to Embit EBI-ZigBee. |
Firmware Support
Supported firmware stacks:
- Texas Instruments IEEE 802.15.4 MAC: TIMAC version 1.5.0
- Texas Instruments ZigBee Home Automation Stack: Z-STACK-HOME version 1.1.0
- Texas Instruments ZigBee Smart Energy Stack: Z-STACK-ENERGY version 1.1.0
- Texas Instruments ZigBee Light Link Stack: contact us
Supported EBI variants:
- Embit Binary Interface for IEEE 802.15.4 protocol: EBI-802154
All the firmware stacks and the documentation is on the CD-ROM included in the Evaluation Kit.
Certifications
EMB-Z2538PA wireless module are
CE certified (Europe)
FCC certified (US): Z7H-EMB2538PA
IC certified (Canada): 21487-EMB2538PA
MIC certified (Japan): 003-170267
Additionally, EMB-Z2538PA wireless modules are ZigBee-ready.
For more informations about certificatio of your final product (regarding both conducted and radiated emissions tests) and compliance with European regulations, you can contact us; indeed pre-compliance assistance is one of Embit Services.
Ordering Information
Part number:

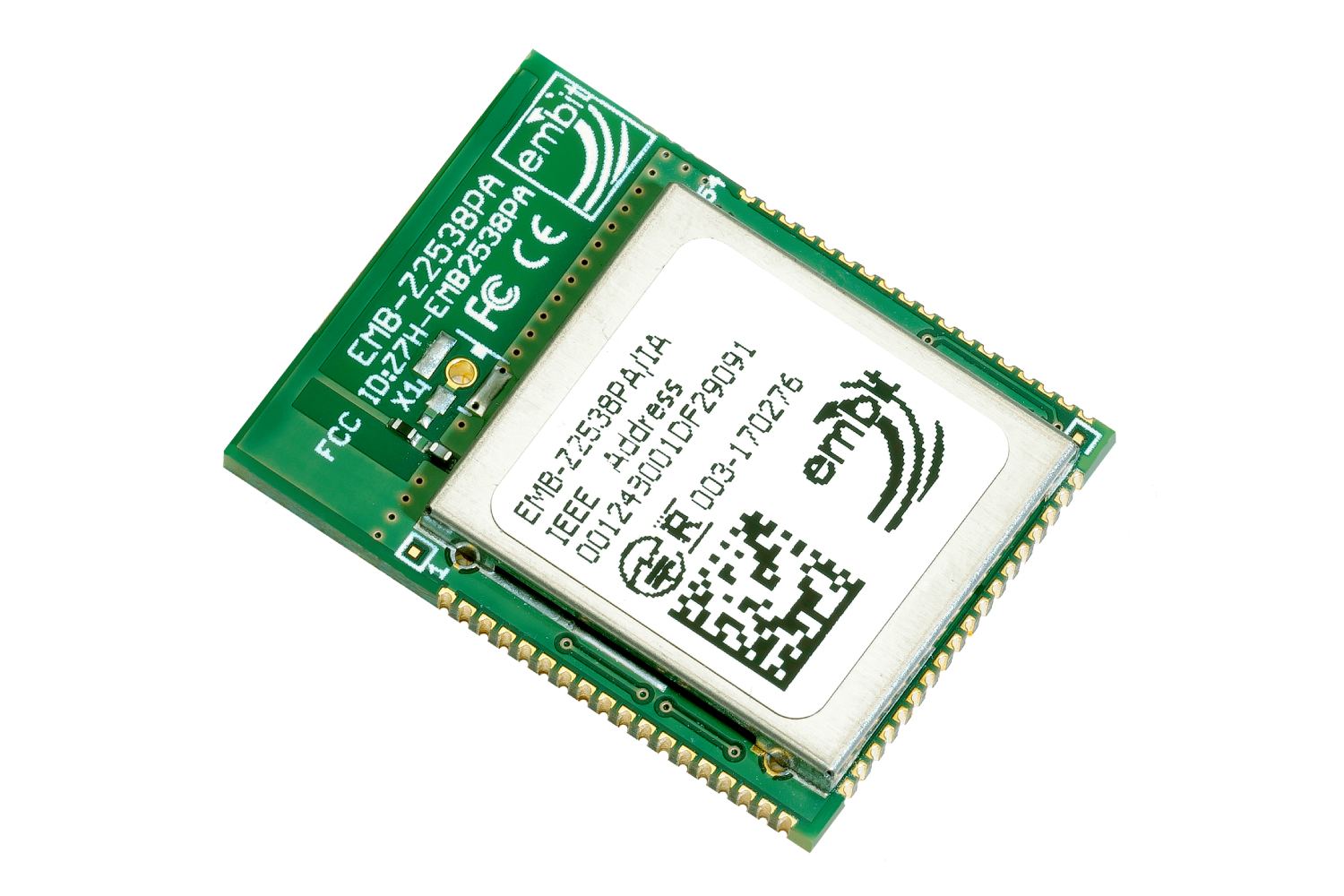

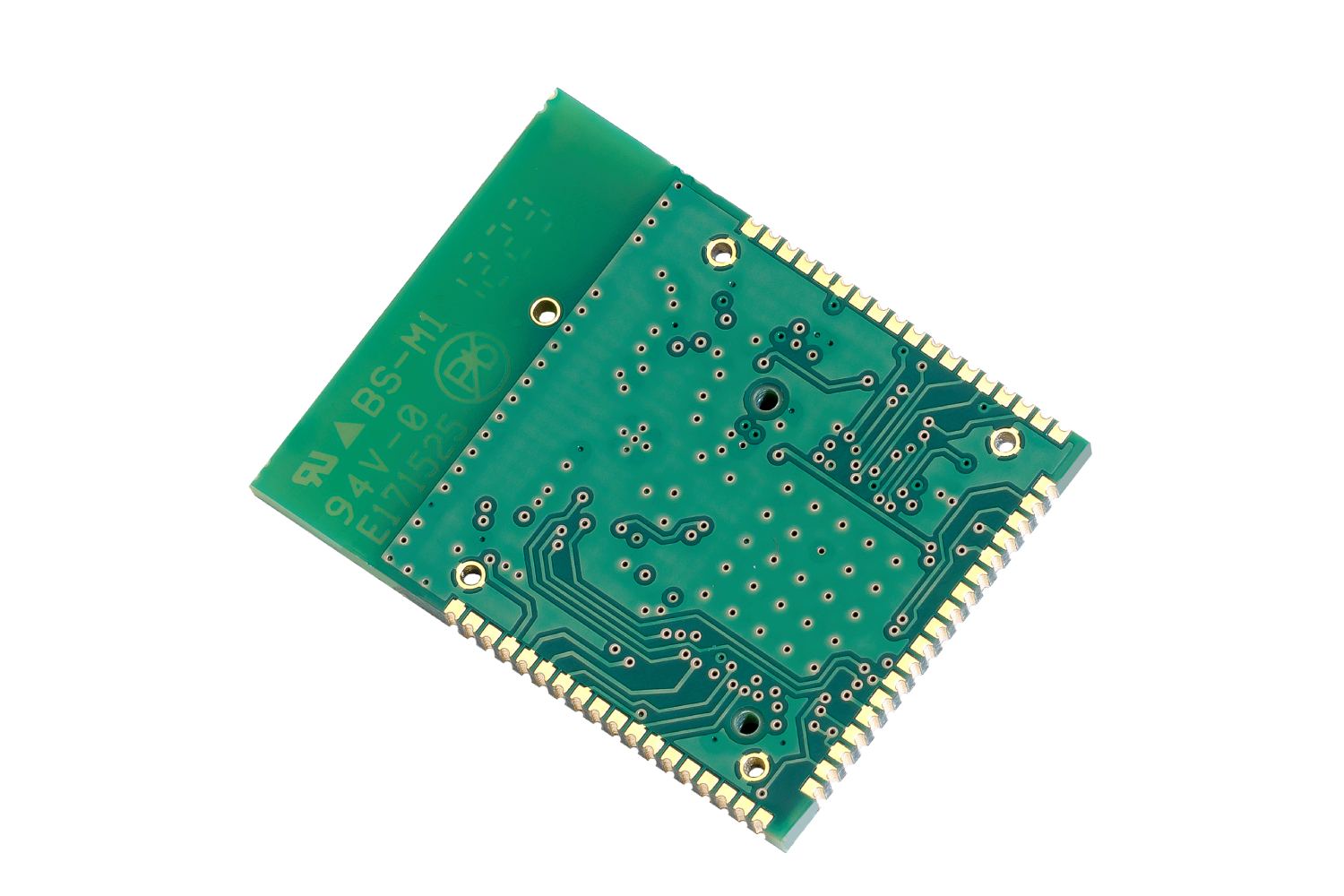

- EMB-Z2538PA/IA (EMB-Z2538PA with integrated antenna)

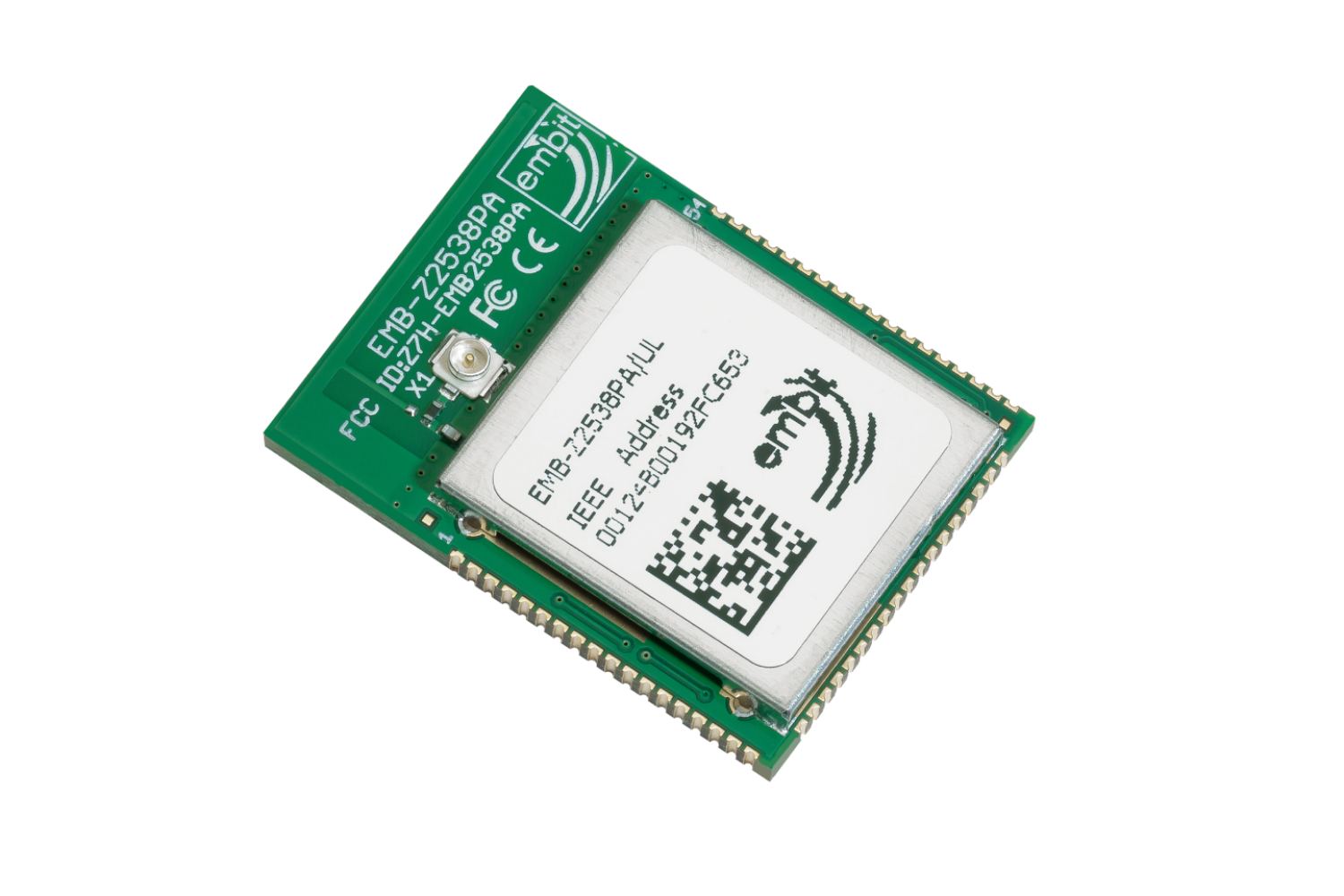

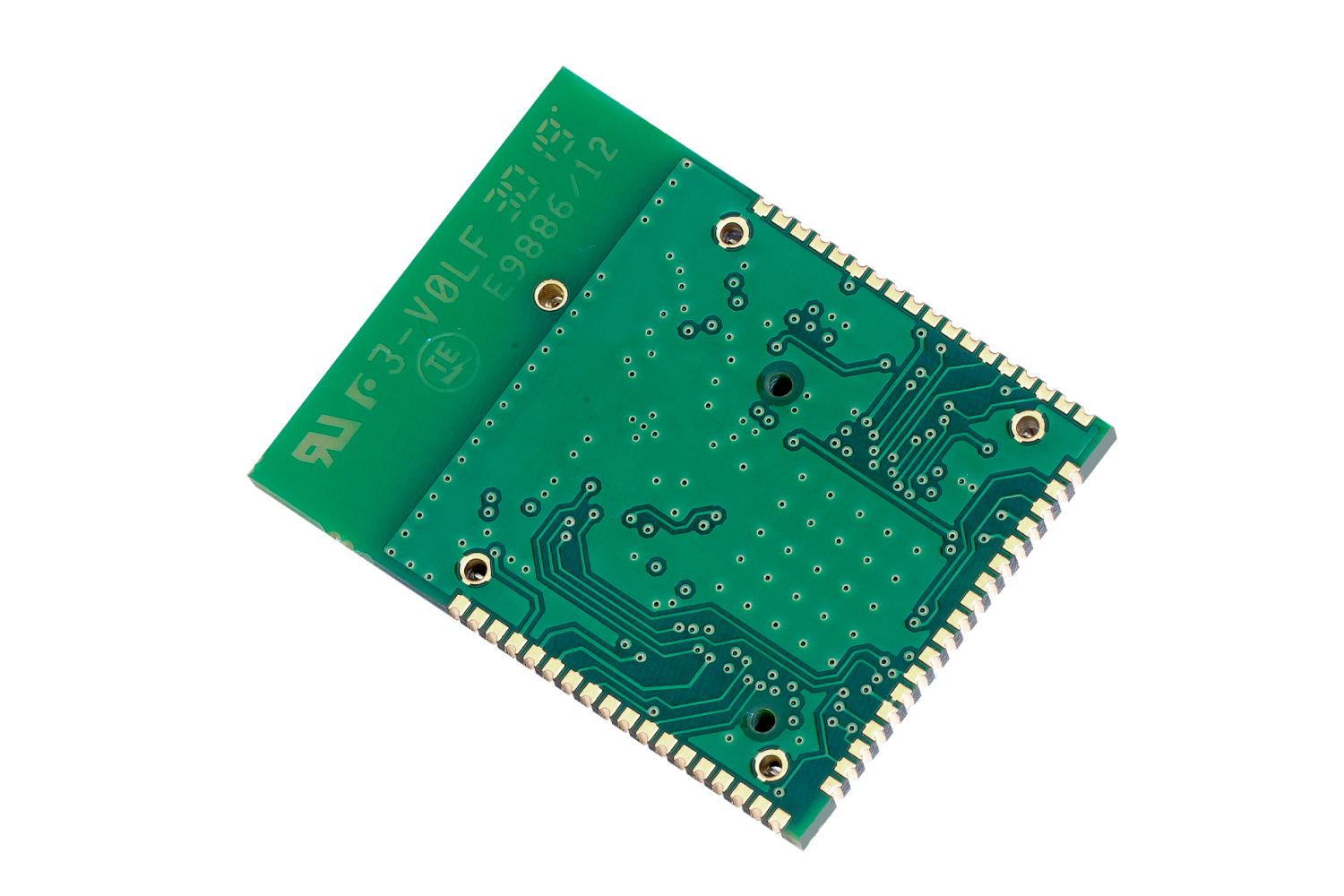

- EMB-Z2538PA/UL (EMB-Z2538PA with U.FL connector for external antenna)
Note: EMB-Z2538PA modules ship programmed with EBI-802.15.4.
For quotes, please use quotation form or use quotation form or contact our sales area at sales@embit.eu.
